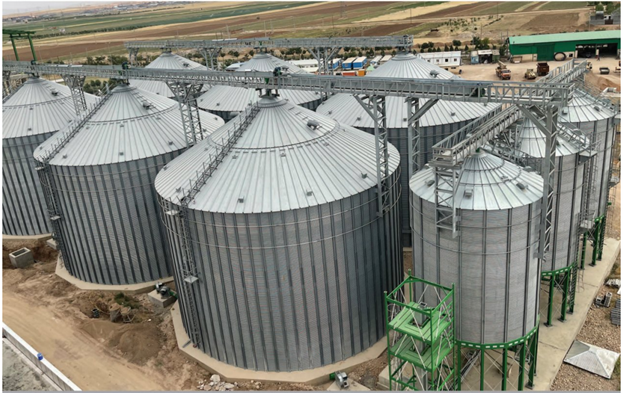

Flat floor silos

Flat floor silos

Delivery of flat floor silos with easy assembly which results in lower installation cost.
Keg Silo Industrial Group offers the range of capacity from 25 to 20,000 tons.
 The sheets used in the silo are made of high-quality steel with warm coating per square meter. which leads to the strength of the silo against wind, snow, rain and air humidity.
The roofs of flat floor silos are variable based on the diameter of the silo and the appropriate angle required, which balances the performance with the strength of the silo and makes it possible to optimize the storage capacity by adapting to the slope of the silo.
The sheets used in the construction of the silo are made of high-quality structural steel, quality S350GD and coating 310 grams per square meter (S350GD+ZM310) Magnelis or PosMac. The sheets are resistant to the maximum yield stress of 350 MPa and the breaking stress of 420 MPa.
» BBCA Storex uses Grade 8 (10.9K) bolts that have a JS1000 or other special coating (no rust in over 1000 hours of salt spray testing. 10 times more corrosion resistant) also from Special insulating materials are used to be efficient. sealing
» The BBCA Storex side unloading system allows gravity loading to trucks or railcars.
» Control system The BBCA Storex temperature control system consists of temperature sensors installed inside the cables to measure grain temperature and a portable or fixed temperature display. The temperature control system is connected to the PLC to enable the control of grain temperature inside the silos through the PLC screen.
